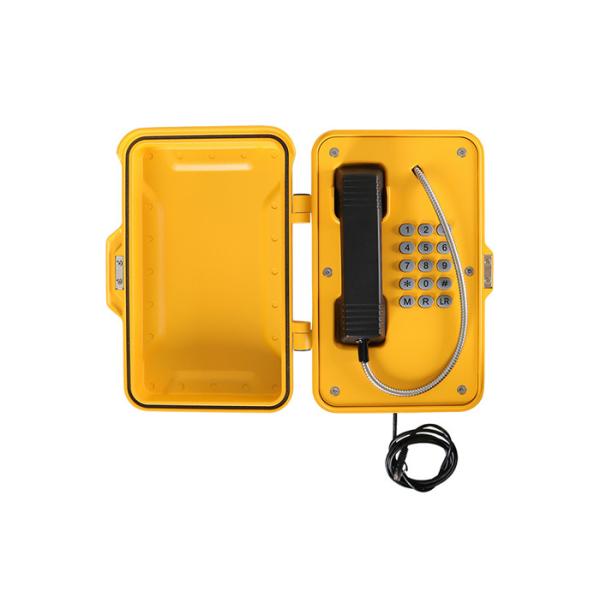

JR101-FK Aluminum Enclosure Industrial Marine Telephone VOIP Orange Phone
Product Description
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Specification
| Analogue Version |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| | - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version |
| Power Supply | PoE or 12V DC |
| Power Consumption | |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version |
| Power Supply | 12V DC |
| Power Consumption | |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| | A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
Application
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Feature
Metal Bodied Weather and Vandal Resistant VoIP Telephone
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection
against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
VoIP/SIP phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear
Voice over Internet Protocol (also called VoIP, IP Telephony,
Internet Telephony, Broadband Telephony, Broadband Phone, and Voice over Broadband) is the routing of voice conversations over the Internet or through another IP-based network.
DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)
Packing
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6.2KG
Gross weight: 7KG
